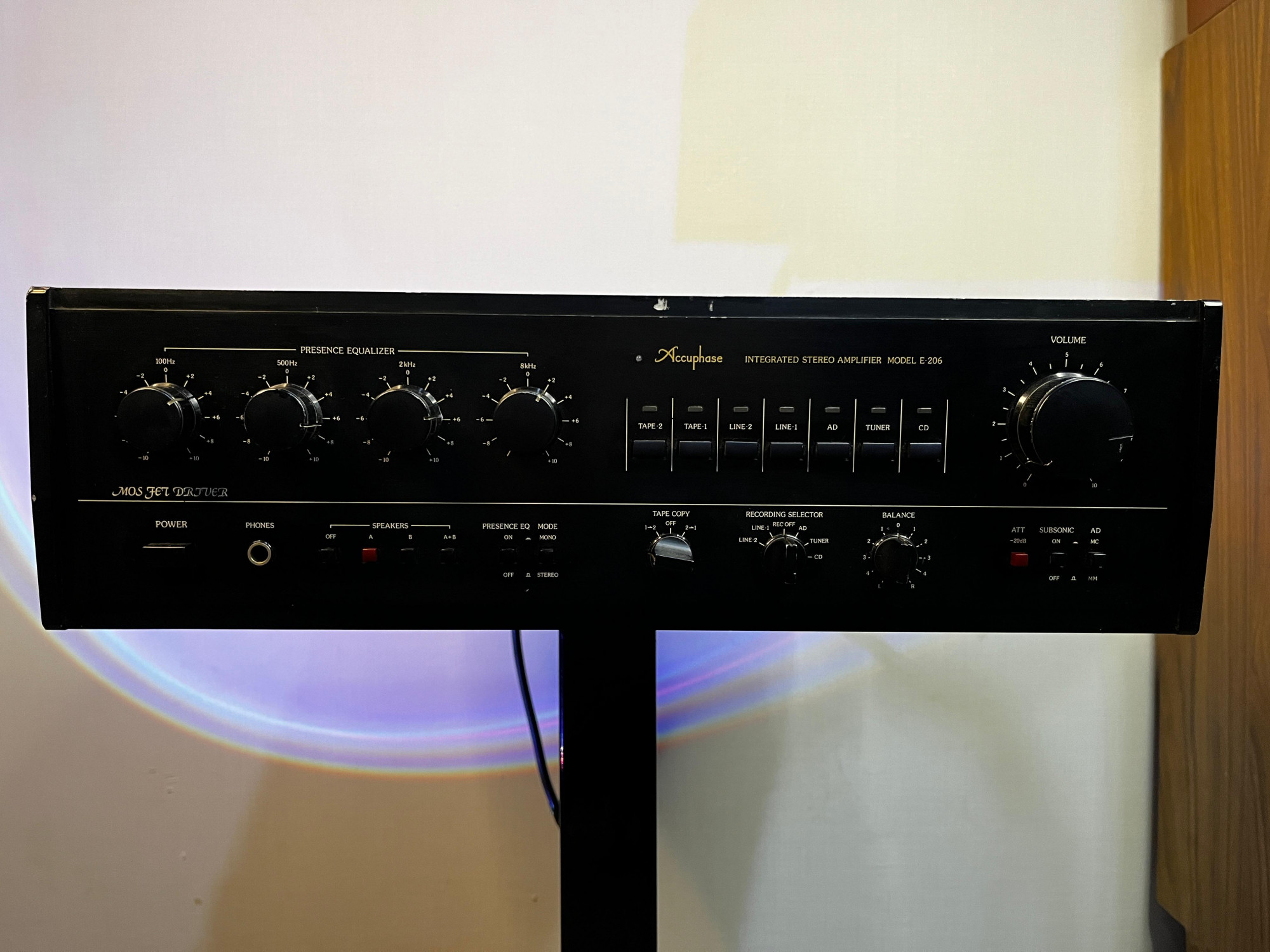

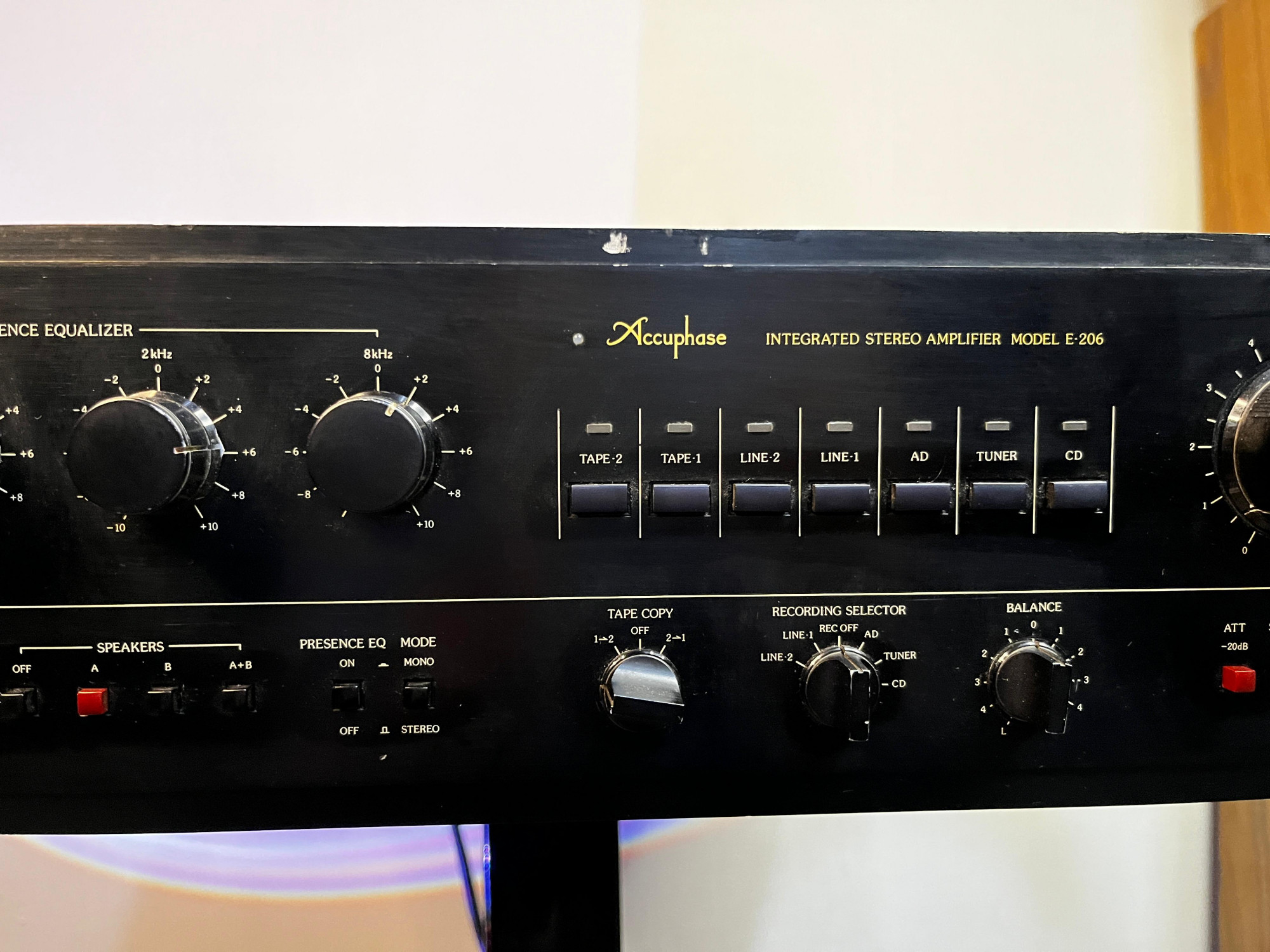

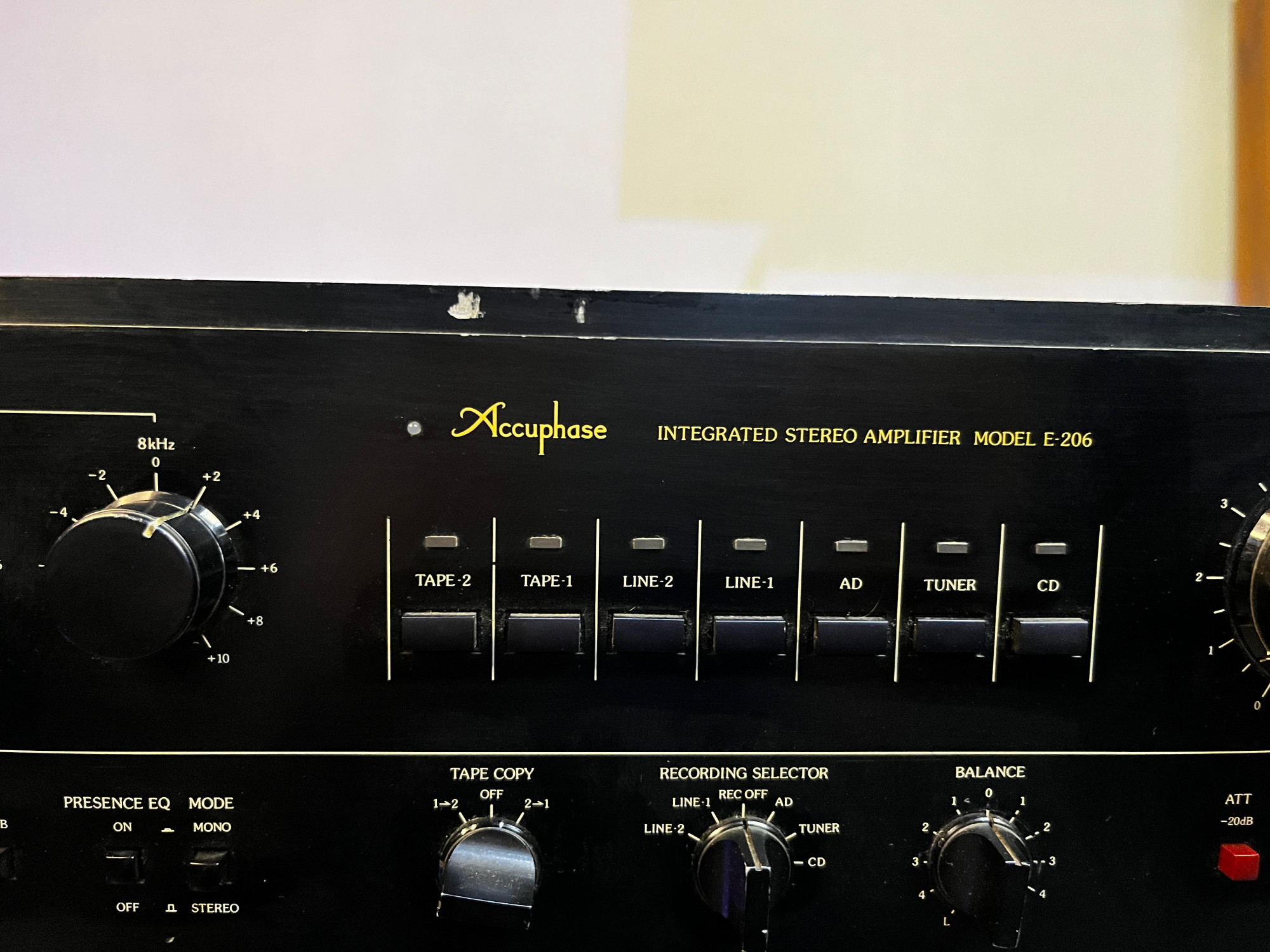

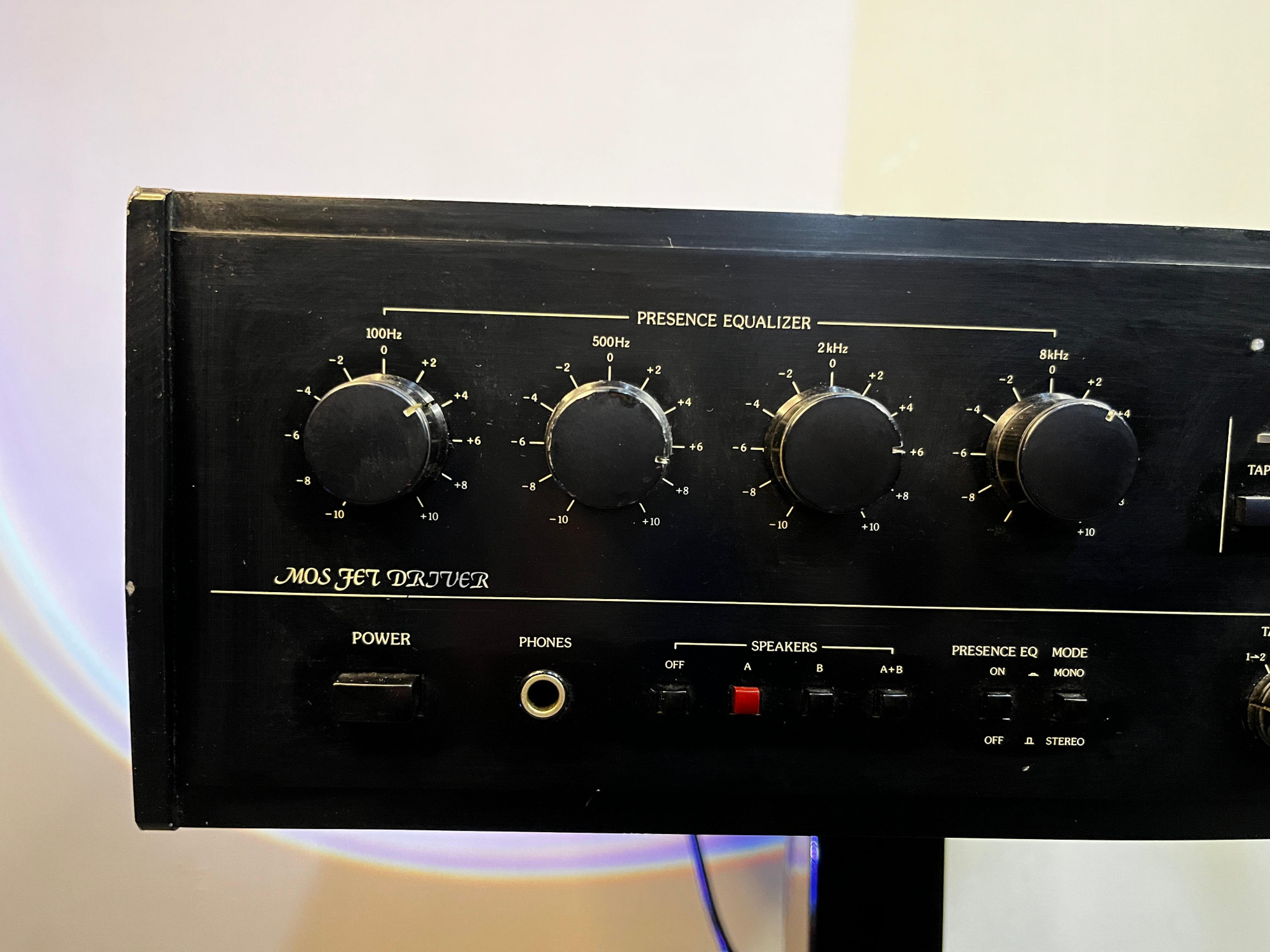

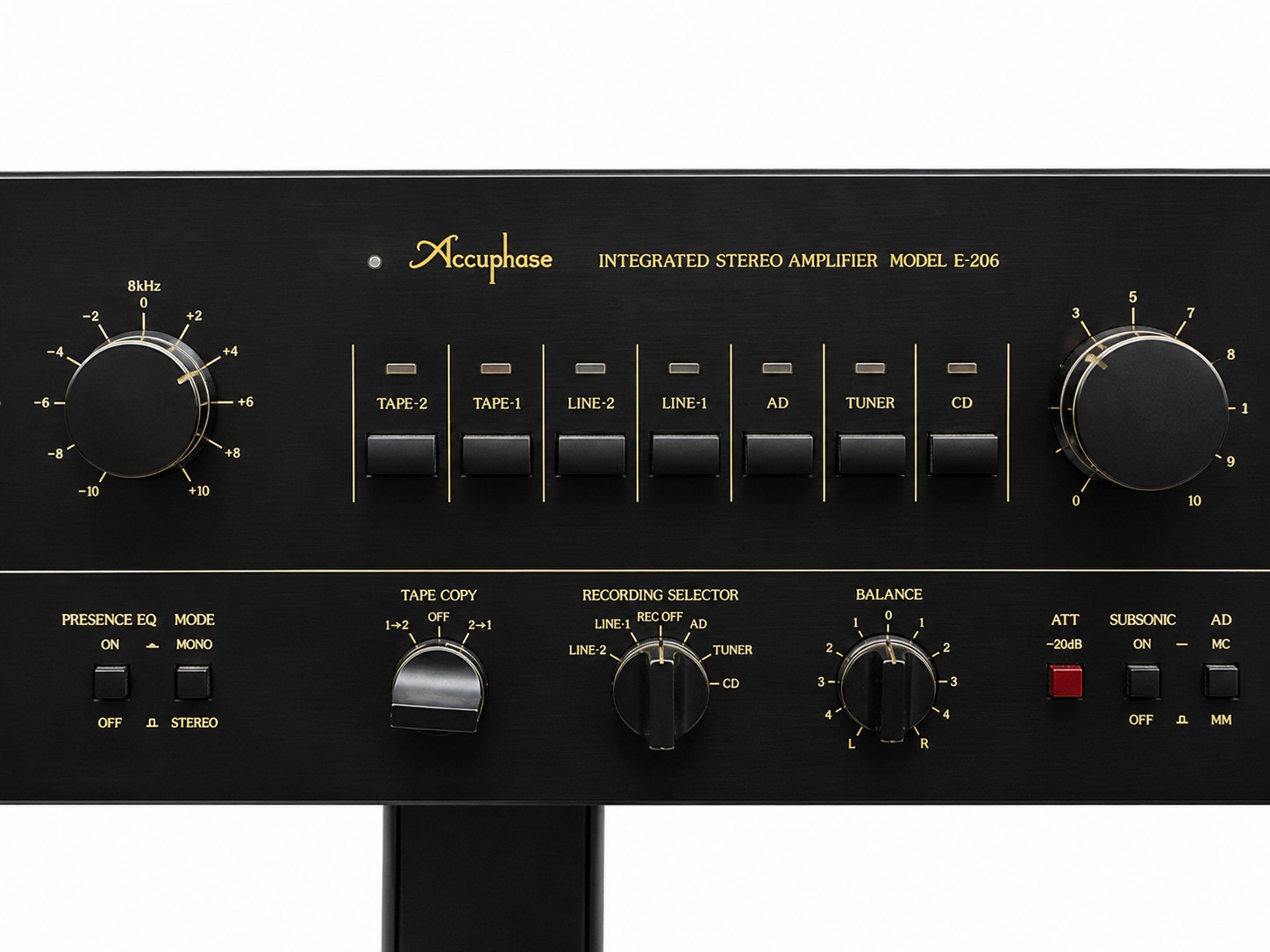

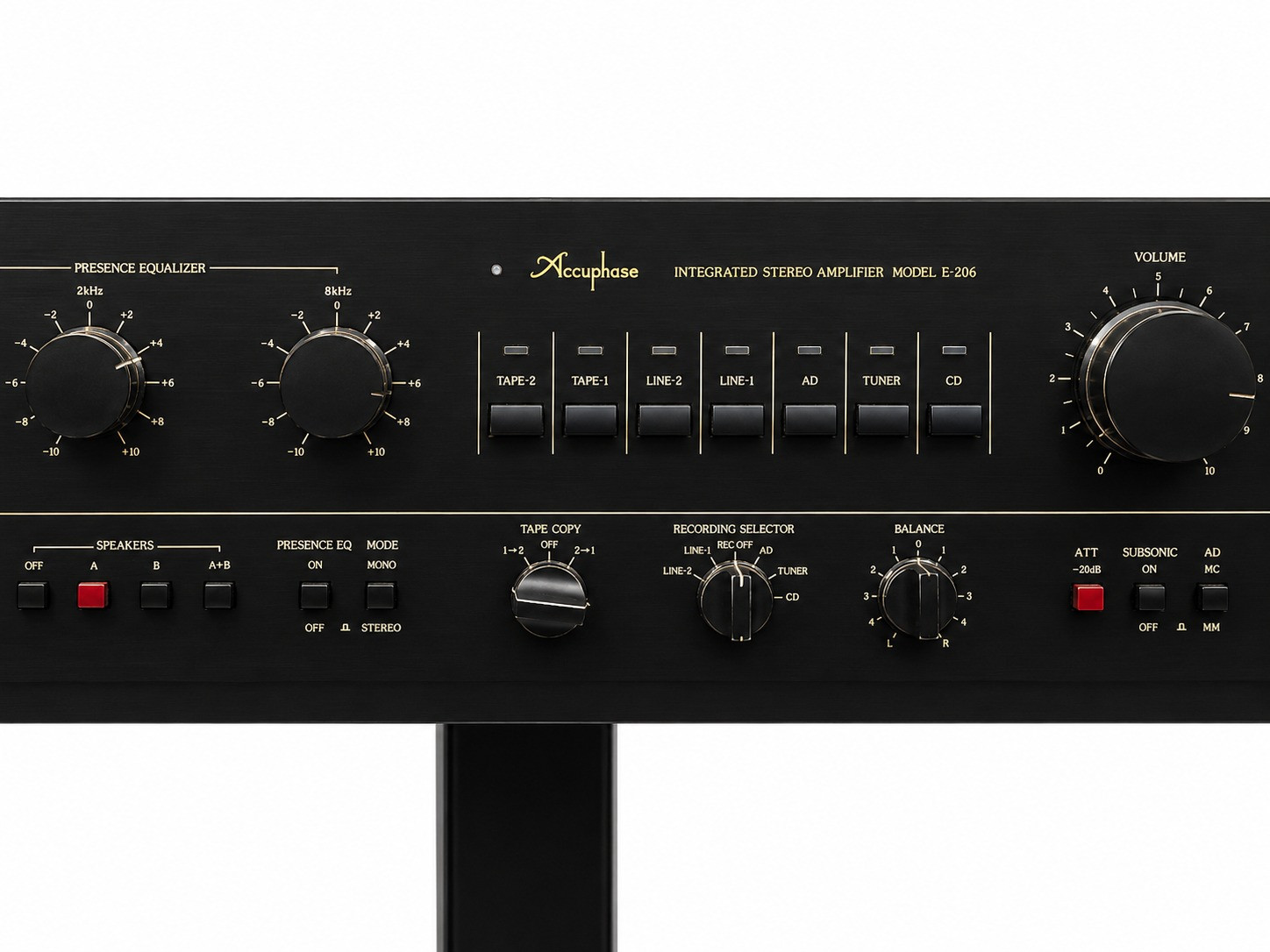

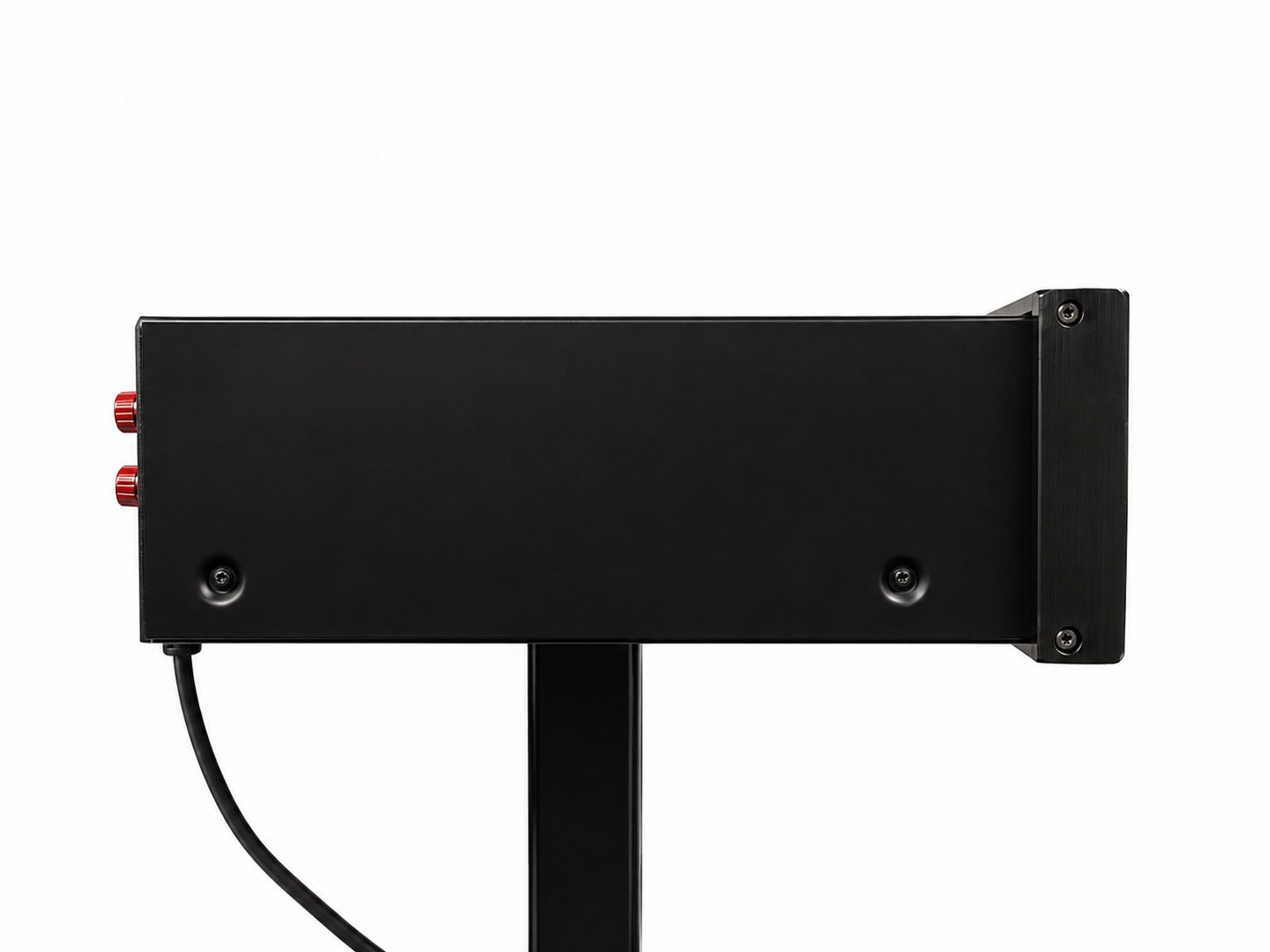

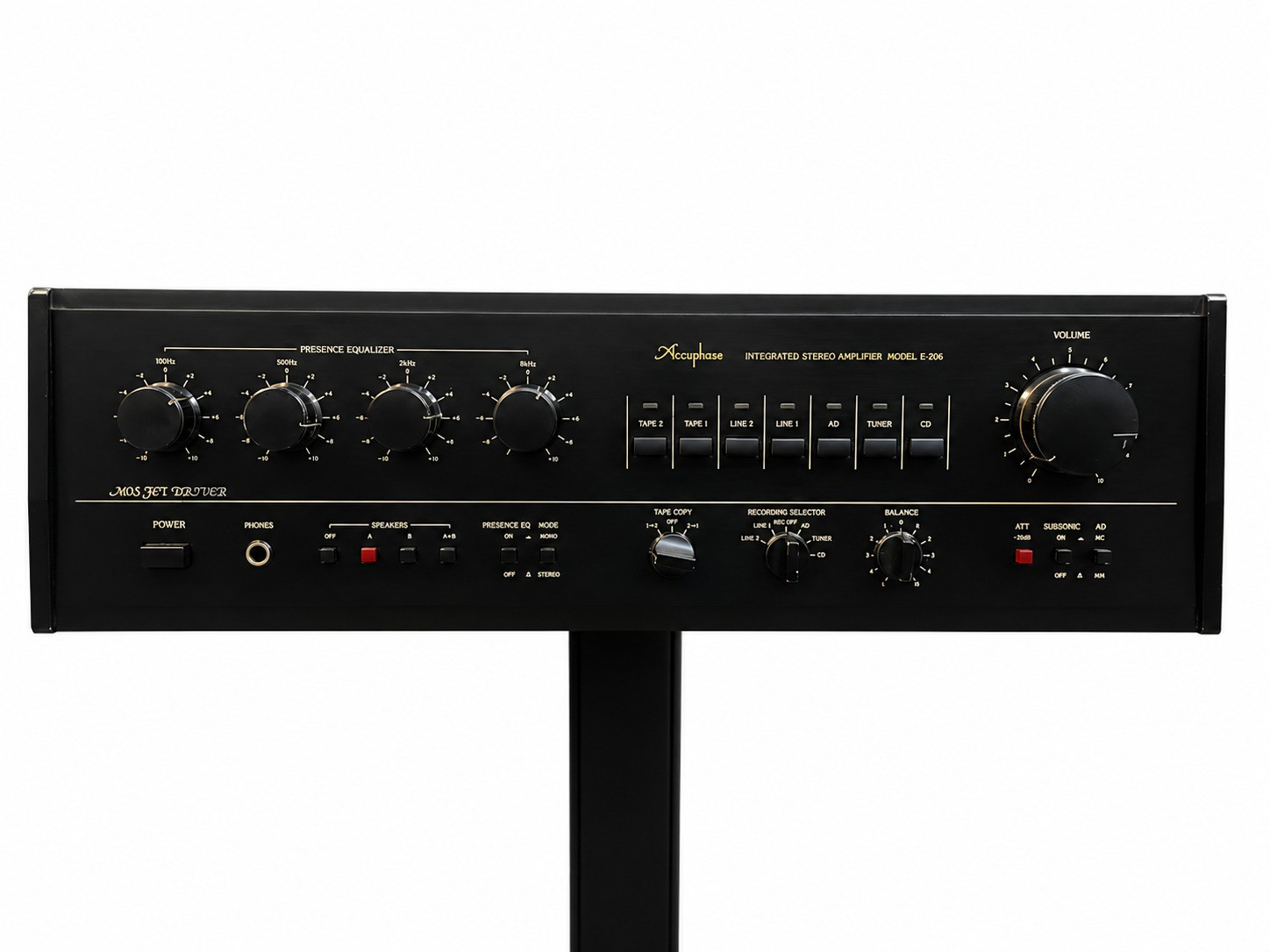

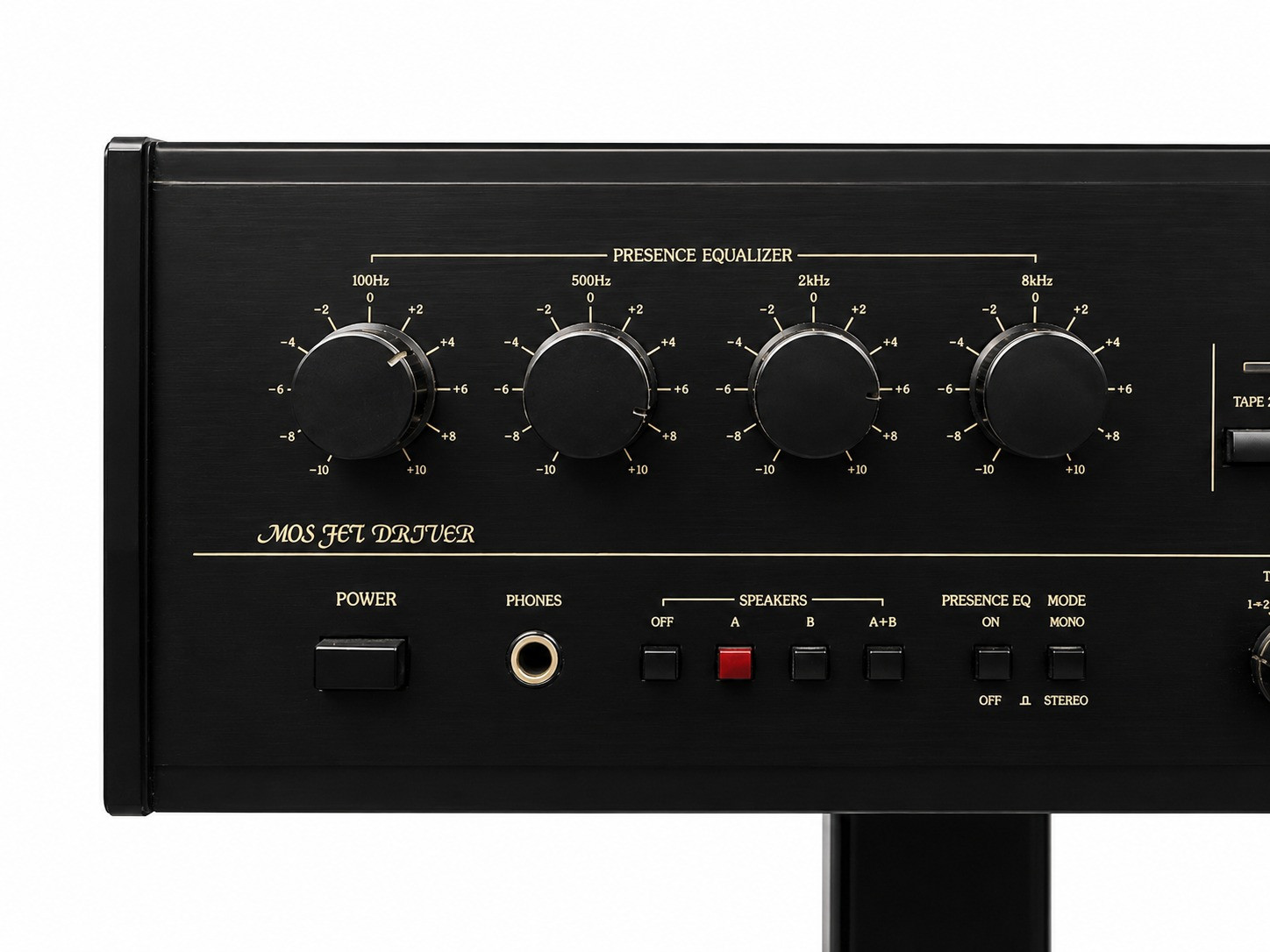

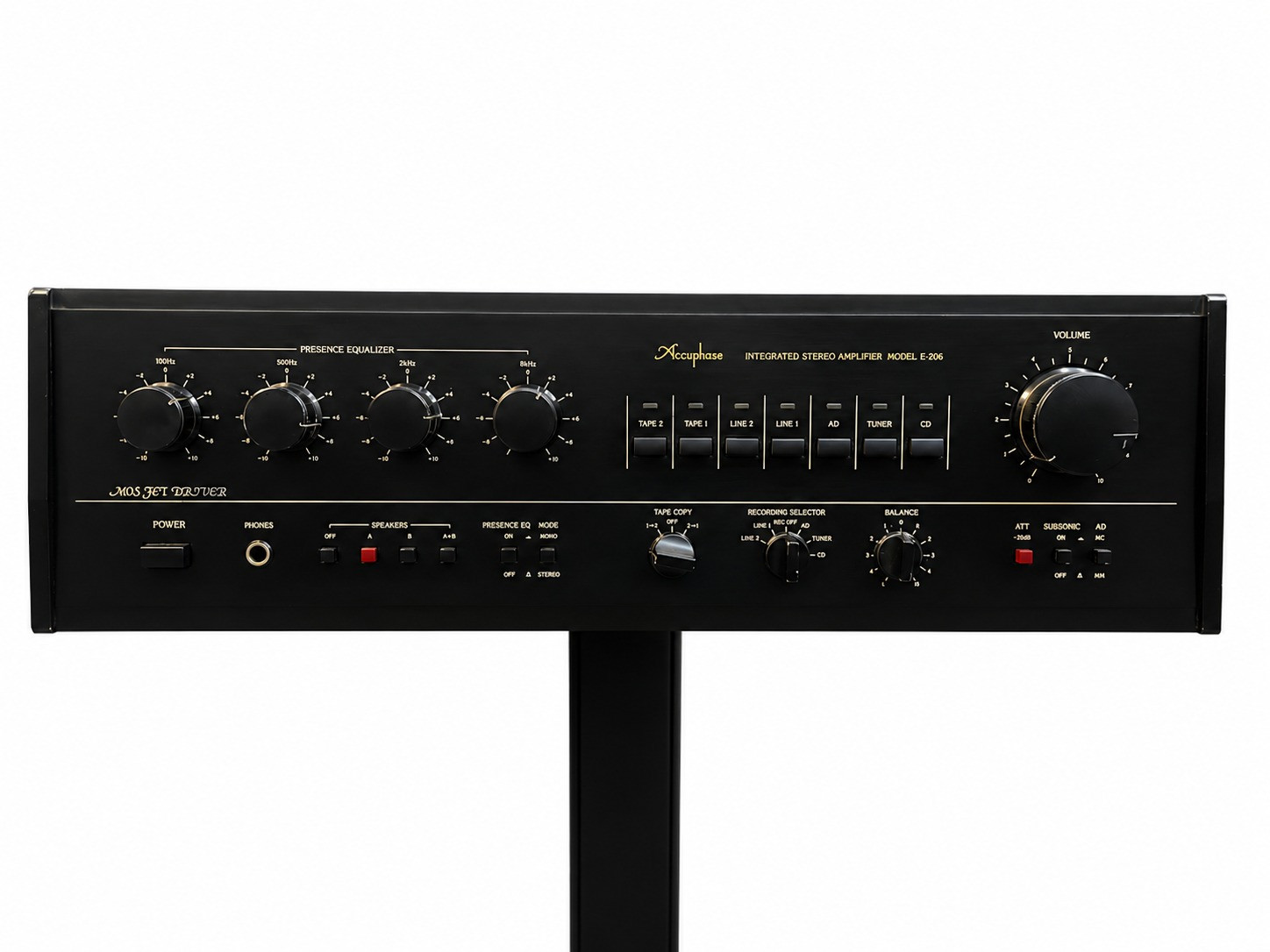

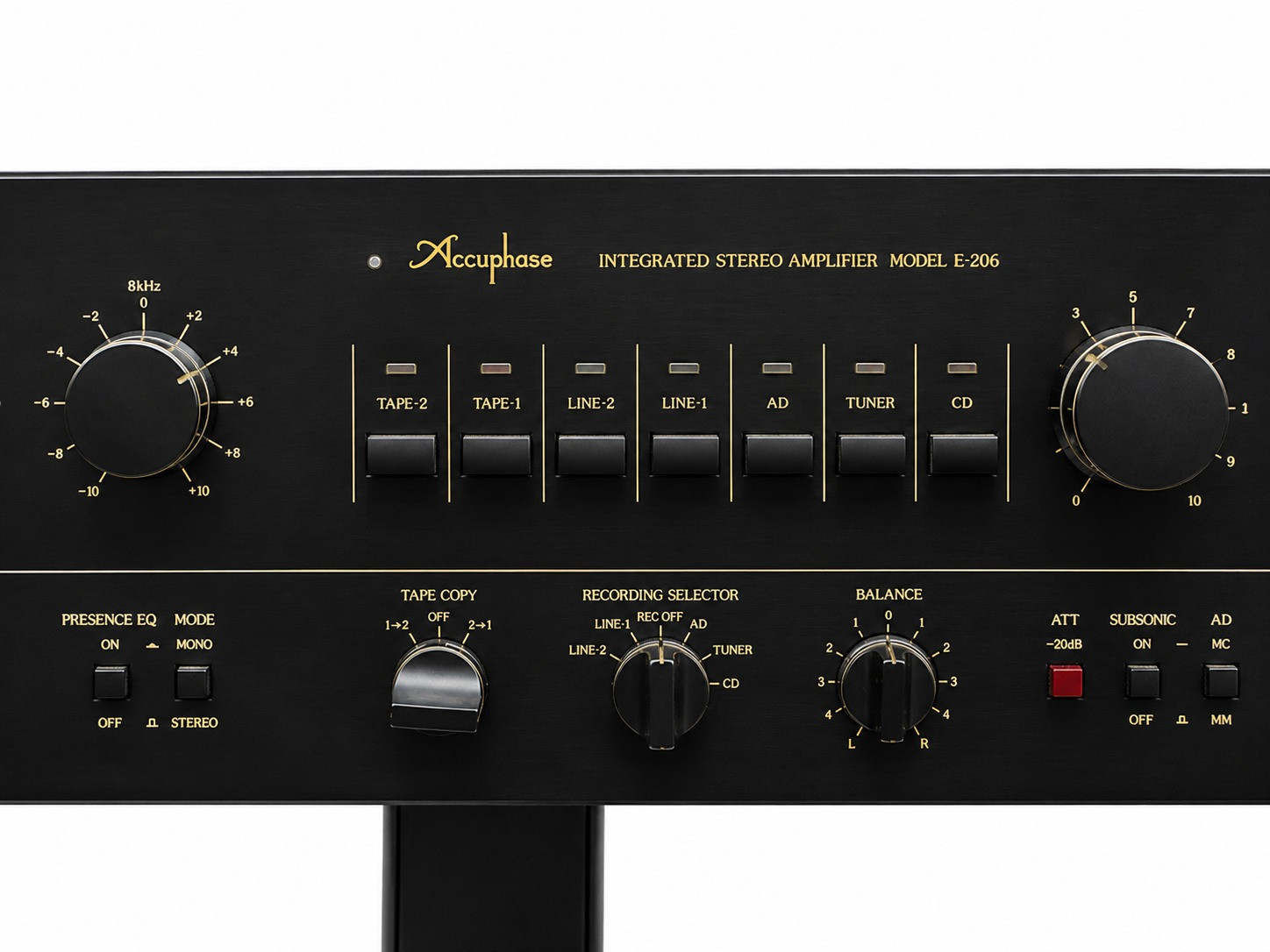

Accuphase E-206

Description

The Accuphase E-206 is a high-quality integrated stereo amplifier produced by the esteemed Japanese manufacturer Accuphase during the early 1990s. Renowned for its exceptional build quality and refined sound, the E-206 remains a sought-after component among audiophiles. Technical Specifications:

• Power Output:
  • 100 watts per channel into 8 ohms
  • 150 watts per channel into 4 ohms
• Frequency Response: 20Hz to 20kHz
• Total Harmonic Distortion (THD): Less than 0.01%
• Signal-to-Noise Ratio (SNR): Over 100dB
• Damping Factor: Over 100
• Input Sensitivity:
  • Phono (MM): 2.5mV
  • Line Level: 150mV
• Power Consumption:
  • No Output Operation: 55W

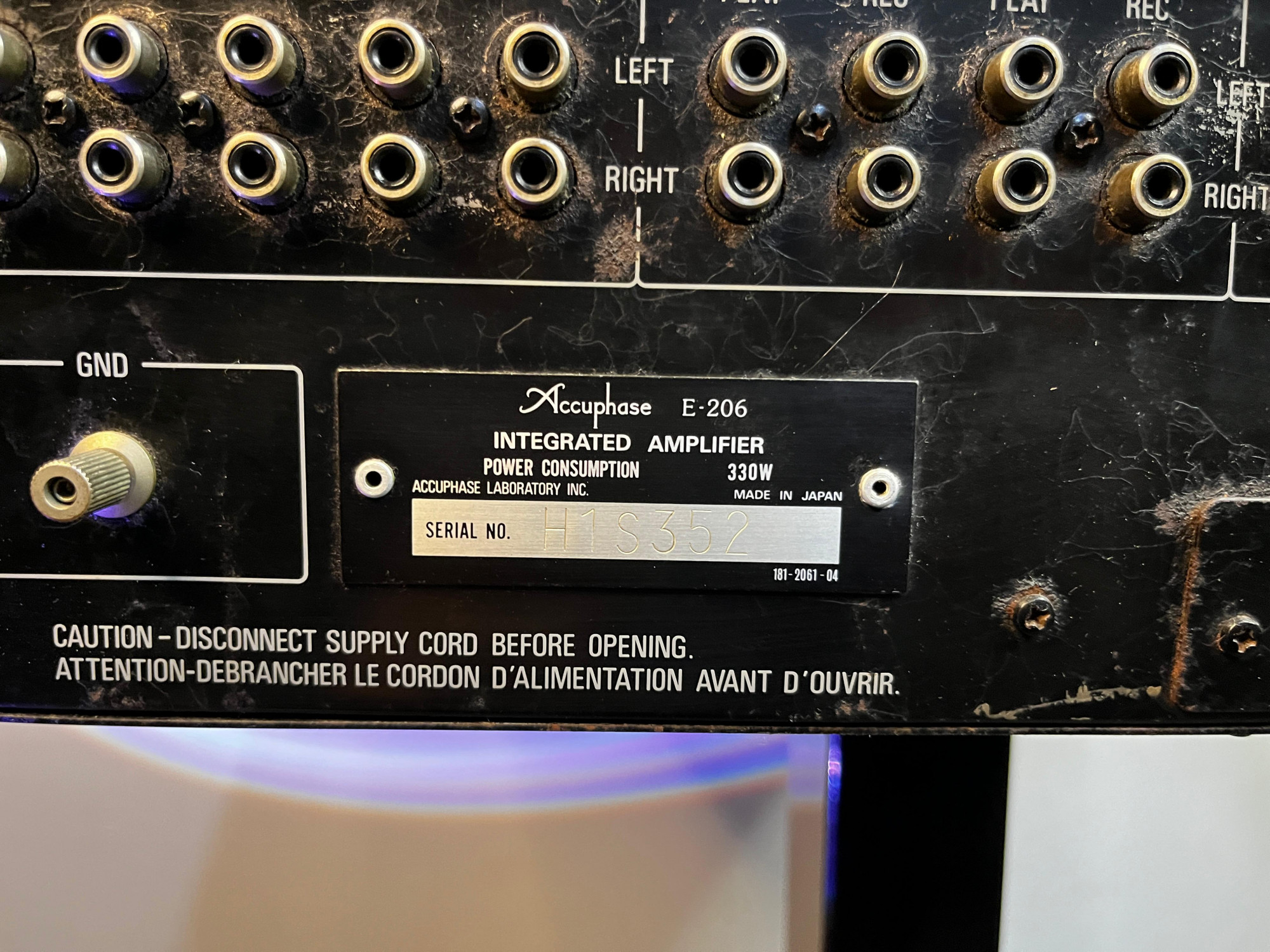

  • IEC 65 Operation: 330W
• Dimensions (W x H x D): 445 x 145 x 370 mm
• Weight: Approximately 17 kg

Notable Features:

• Triple-Winding Power Transformer: The E-206 is equipped with a power transformer featuring three separate windings dedicated to the preamplifier, power amplifier driver stage, and output stage. This design ensures minimal interference between stages, resulting in cleaner sound reproduction.

• Separate Regulator Circuits: Each channel possesses its own regulator circuitry, providing stable voltage and enhancing stereo separation and imaging.

• Robust Build Quality: Accuphase's commitment to excellence is evident in the E-206's construction, utilizing high-quality components and meticulous craftsmanship.
